Pop – Putting it Back Together

Hi folks, it’s Pop here.  Janet did an excellent job explaining basically the what’s and why’s of rebuilding her little 200ci six banger.  More air, more fuel, bigger spark, bigger explosion and more power.  Carl’s Machine Shop was fantastic, and now we have to assemble the parts.  This indeed trips my trigger and I will explain the procedure much to the boredom of some of you.  But, perhaps we can convert a few into budding “gearheads”.

We’ll begin with the bare engine block which was cleaned up, magna fluxed (a process to detect cracks…it passed), over bored 60 thousands of an inch (this is the maximum and was necessary because of scoring in cylinder #4, the result of a broken ring), and new freeze plugs installed.

IMG_4275

The crankshaft went in first with .010” over bearing inserts.  This requires clearance checks using plastigauge.  Plastigauge is thin plastic thread which when compressed, spreads out and its width is then measured to determine clearance.  The top bearing shells are placed in the block, then the crankshaft, then strips of plastigauge across the bearing journals, then the bottom bearings and caps.  The bearing caps are then torqued to specs.  The caps are then removed and the width of the plastigauge measured.  I won’t further torture you with the measurements acceptable throughout the assembly procedure except to say, “everything checked out”.  (Janet: “Except to say we had to do math…math sucks.”)  The crank is then removed and turned over 180 degrees and the process repeated, assuring a straight bore and shaft.  Everything checking in specs, the bearing surfaces are lubricated, assembled and torqued to specs.  One final step, the crankshaft is then moved forward and backward to check end play.

The camshaft (which opens and closes the valves) was original and installed by Carl’s with new bearings, as this requires special tools.  (Janet: “Some of the only tools Pop apparently does NOT have in his garage. It’s just a matter of time.”)

IMG_4312

Next, the pistons with new rings (which snap into piston grooves, hold compression and control oil on the cylinder walls), three rings per piston.  Before the rings are installed in the piston grooves they must be placed in the proper cylinder bore and the gap between the ends measured.  Too close a gap and the ring will break when it expands with heat, spelling disaster.  (Janet: “Apparently I got my dramatic nature from my father.”)

IMG_4278

Each piston is fitted to numbered connecting rods then placed in the proper cylinder and attached to the crankshaft, plastigauged, lubed and torqued to specs.  With the installation of a new oil pump, the “bottom end” is now complete.



New timing chain (which goes on gears at the front end of the crankshaft and camshaft) is installed and the front cover and oil pan installed.  We’re now ready for our new and improved cylinder head.

IMG_4230

One final and most important measurement is needed, valve clearance.  We now have oversized valves and increased openings with our new 1.6 to 1 rocker arms.  Heaven forbid the valves hit the pistons at top dead center!  That would again lead to disaster.  (Janet: “Need I say more?”)

IMG_4342

With #1 piston at the top dead center, we fill the space between the block surface and the piston with clay (in our case, Playdough).  We also filled #6, then install the head gasket and head.  The head bolts are torqued, the valve train assembled and adjusted and the engine turned over 720 degrees or two revolutions of the crankshaft (one revolution of the camshaft).  With fingers crossed, we disassemble the valve train, remove the head and measure the distance from the bottom of the valve indentations to the piston surface.  Yes!  We have clearance!

IMG_4329

The top end is now reassembled and the oil pump driven by an electric drill (the bottom of the distributor shaft will do this).  Checking for oil flow from the rocker arms aaaaaaaand – success!



Finally, valve cover on and new Ford blue paint job.

IMG_4346

IMG_4357

During Janet’s next visit we’ll install our Autolite two barrel carburetor with automatic choke onto the beautiful adaptor plate on the intake manifold.  Add our new 50,000 volt ignition and big exhaust headers and we’re ready to kick some ass.



(Janet:  “Pop and I have very different ways of showing overwhelming excitement.”)








Carl’s Automotive Machine Shop

Carl’s Machine Shop opened in 1988 in Calvert City, KY.  It’s a small garage with an adjoining office that cranks out some big stuff.  Carl’s daughter, Carla, runs the shop with her husband Michael as the lead machinist.  The combined knowledge between the two of them is unbelievable.

IMG_4200

Carla and Micheal of Carl’s Automotive

Pop and I were literally talking about who to bring Mavis’s straight 6 to for some machining when we passed Carl’s.  Pulling in I was already nervous about how “Carl” would react to being asked about souping up a little 200.  “We only work on V8’s.” “No specialty jobs.” “Why would you waste time and money trying to build that thing up?”  Michael was working on a opposed 6 cylinder engine when we approached through the open garage door.  We explained our situation and what we were attempting to do and he lit up.  “I just finished a 3 carb set up on a 200 for a guy last week.” Hot damn. Michael was our man!

The real engine work is what really blows Pop’s skirt up.  He’ll let me clean bolt threads and wet sand all day, but when it comes to the mechanical shit, I’ve gotten my share of love shoves.

Love Shove: When Pop wants you to move, so he can basically take over what you are trying to do, he will use his body to ever so gently move you out of the way while his attention remains on what you are doing.  Next thing you know, he is now working on what you were working on and you’re not quite sure how it happened.

I (sort of) gave Pop free reign on the decision making around the engine and its performance.  First thing he did was purchase The Ford Falcon 6 Cylinder Performance Handbook by brothers David and Dennis Schjeldahl.  It contains about every thing humanly possible to do to get more power out of our little 200.

Then he and Michael co-conspired on how to spend as much of my money as possible.  Kidding, but really, they came up with a plan to punch up the power.  Here’s the skinny:

The weakest aspect of the little Ford 200 6 cylinder is the integral intake manifold.  In other words, the manifold is a part of the engine head casting.  Besides being set up only for a small, one barrel carburetor, castings can be rough, limiting, and obstruct a smooth air/fuel mixture.  To cure this problem, we had Michael install a two barrel carburetor adapter plate, increasing air intake from roughly 110 cfm’s to 240 cfm’s.  So now we can cram 240 cubic feet of air/fuel mixture per minute into the combustion chamber, doubling what we had before.  More air, more gas, more power!

IMG_4231

An example of Michael’s top notch machine work.

To get this increased mixture to the cylinders, we had Michael install oversized stainless steel valves with new stock springs and .060 shims.  According to old turbo 200ci Mustang racers, this should be good for 6000rpm without valve float.  (Valve float: When the valves do not follow the cam or ‘float’, they can actually run into the piston tops.)  This is more than enough, as I told Pop we’ll redline at 5K at the most.  He looked at me with a grin and said, “maybe.”

IMG_4260

We also had Michael add a 3 angle cut on the valves.

He ported the head, enlarging the intake and exhaust passages.  Michael also installed an exhaust port divider on the Siamese number 3 and 4 ports, which stops possible exhaust induction back into the engine at the exhaust port, making the outflow of the exhaust smoother.  There’s arguments for and against doing this.  Some say it adds 5 or so more horsepower, some say it doesn’t do a damn thing.  We’re betting on the horse power.

IMG_4258

Beautiful!

To finish the top end, we’re dumping the exhaust into oversized, stainless steel headers (BIG exhaust pipes).  These will be revealed at a later date.

On the bottom end, or the block, he bored the cylinders .060 of an inch over which cleans up any old scores and imperfections and will give us another few cubic inches. We installed flat-topped pistons, which will raise our compression ratio, adding more torque and power.  We turned the crankshaft .010 under on the rod and main bearing journals, again, cleaning up any imperfections or misalignment.  Our little inline 200ci 6 cylinder has 7 main bearings, making her virtually indestructible.  A 350ci GM V8, for example, has 5 main bearings.

IMG_4275

We’ll be running the stock camshaft, great low-end torque, with hydraulic lifters and adjustable 1.6 to 1 ratio rocker arms.  Stock rocker arms are 1.5 to 1 ratio.  1.6 gives us approximately .034in increased valve opening.

Soon to come, electronic ignition for the big spark we need and a Autolite/Holly 2V carburetor (also known as a 2 barrel).

Pop says, “We’re hoping to pull 200 horse power out of this little girl.” The stock rating was 91.  Dear Lord, what have I gotten myself into?

IMG_2537

Carl’s Automotive Machine Shop

To close, I must extend a very big thank you to Michael, Carla and the team at Carl’s Automotive.  Once we got the engine home for the build out, Michael continued to be available to us for questions and advice.  Check out his Instagram account where he pulls in a couple thousand viewers by posting videos of machining crankshafts.  Good guy, good family, good peeps.



Car Folks

Maverick Mike from the Maverick forum told us about a gathering in Somerset, KY in July.  Fellow Maverick lovers get together and show off their pride and joys or projects in the works and yuk it up about Maverick life.  Unfortunately, I couldn’t go, but Momma and Pop were able to hit it and represent for me and Mavis.  Although I’ve given some of the forum guys a little shit, it’s all in jest because car people really truly care about other car people.  They want to help with advice, share stories and tips and generally support the passion.  The P’s said that all of the folks at the gathering could not have been nicer.

IMG_0416

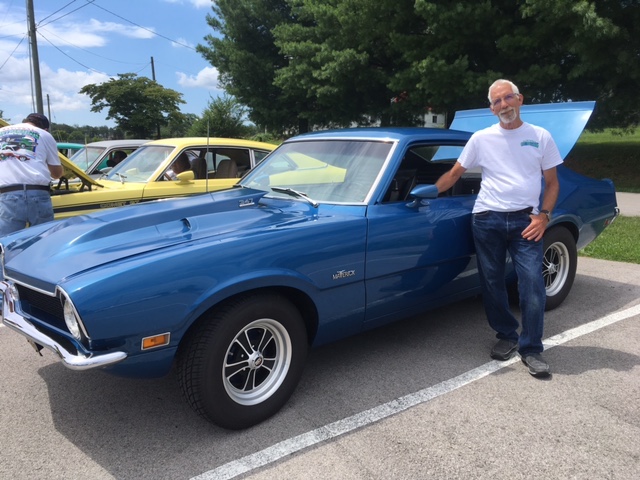

Maverick Mike with his ’72 Mav which he has driven as fast as 117mph (so far).



Car shows and gatherings are also great places to find that ever elusive part you’re looking for.  Pop met a great guy named Tony Rahm.  Tony is known for having a lot of parts stashed away in his wood shop, so Pop mentioned that Mavis had come with pins to hold the hood down but no hood latch.  He gave him his card and asked Tony to let him know if he ever came across one, that we’d buy it.  Later in the day Tony approached Pop with, guess what, an upper hood latch.  Said he had to go by his shop anyway and handed it to him.  Pop took out his wallet asking what he wanted for it and Tony told him to put it away.  He wasn’t going to take any money for it.  That’s just good peeps.

IMG_0420

Pop, Tony and the hood latch.  Tony, you’re a gem, thank you!!

More pics from the Maverick gathering:

IMG_0410

Forum member Frank’s ’73 Grabber is named Patches, due to the fact that he has pieced the body together and has yet to paint the thing.

IMG_0411

Patches was honored with its pic on this years t shirt.  Something I aspire to.

IMG_0400

The closest thing to Mavis.  Four lug wheels, and a 200ci Inline 6.

IMG_0402

Not much has been changed since the factory, but for the custom wheels and color.

I’m here in KY for a couple weeks and we were all over the Cadiz Cruz-In, a local car show the first Saturday of every month.   Pop and I continue to wring our hands over our brake situation and the fact that we absolutely cannot find a larger drum brake for the rear axle than the dinky, unsafe 9” drums (that we threw away…don’t want to talk about it).  Giving up on drums entirely,  we now find ourselves looking for discs for the back.

We finally, FINALLY thought we had found a disc brake kit that would work for Mavis.  All of the dimensions were right but for one.  It’s called the ‘flange offset’ and it’s kicking our asses.  The kit calls for an offset of 2.8 inches, ours is 2.  It makes absolutely no sense why our 8” differential doesn’t have what everyone is saying all of the other 8” back ends have, a 2.8” flange offset, but it doesn’t.  Word on the street is that back in the day, Ford factories would switch up parts depending on what they had laying around.  So discovering that your old Ford has a slightly different part than other Fords of the same year is not uncommon.  (I recently learned the Henry Ford would use wood from shipping crates as the floor boards for his Model-T’s.  Great reuse of materials, but unfortunately doesn’t make him any less of a dick.)

So, circling back to the car show and why all of this is important.  We think one of our only hopes is to find a 7.25” Ford differential as we have come to believe that it will have axles with the 2.8″ flange offset we so desperately need.  (It also needs to have the right length and spline count.)  Now, you can’t just order up a 7.25″ Ford backend, no one makes this shit anymore.  You have to find it, or rather search for it in salvage yards, in barns and overgrown backyards, through car forums, or, in some cases, on a car just about ready to get crushed in a scrap yard.  We heard from our buddy Curt that he had seen a Maverick at the local metal recycle yard, so we hauled ass over there, only to find that it had been crushed only days earlier.

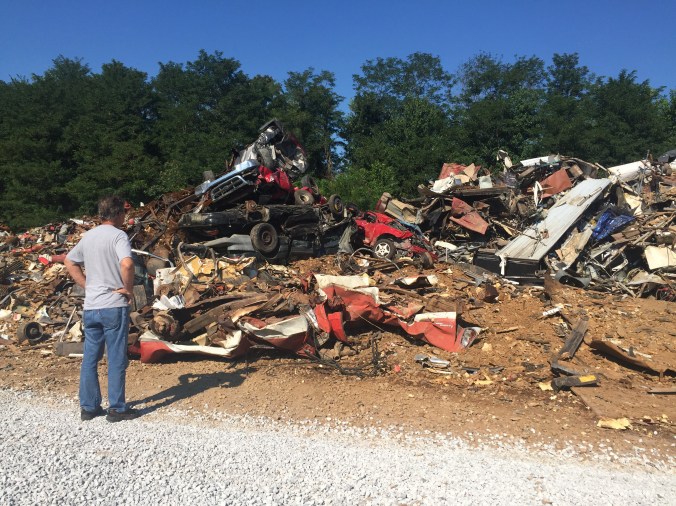

Pop looking at a pile of scrap crap where an old Mav once sat, perhaps trying to will it back.

There was only one Mustang at the Cadiz car show that night, and we asked the owner straight up if he had or had a line on old Ford rear ends.  He said no, but that his friend “right here” just pulled one out of a Mustang days before.  His friend Marty proceeded to pull out his phone and show us a 4 lug backend.  Said he had no use for it and that it was a…wait for it…7.25″.  Holy crap.

Marty said he’d call us to set up a time we could come get it for $100.  We may have the ultimate solution if everything measures up.  We could have either beautiful, safe disc brakes on Mavis’s original 8” back end, or, we may have a 150 pound piece of scrap metal.  And that’s only IF he calls us.  Our back brake dilemma has come down to one question:

Is Mustang Marty Miller a man of his word?

5 DAYS LATER

Aaaaaaand, yes!  Marty Miller IS a man of his word!  He called and we swung by his place to pick up the back end.  Paid him the $100, exchanged contact info and took a look at his project car, a ’65 Mustang fastback.  (Which means the back of the hood slopes down into the end of the ‘trunk.’)



I hate to say it, but once we got it home and pulled everything apart, we found that the offset was exactly the same as ours.  Long story short, it won’t work for the disc brakes we wanted.  But Marty proved again that car folks are good folks and at least we’ve made a new friend out of the deal.

So, we’re going back to basics and shit-canning the rear disc brake idea.  We’ve already found another set of 9″ rear drum brakes through a friend of Pop’s, Mark, another car guy.  I think we are both almost relieved to come to a final decision about the back brakes and move on.
